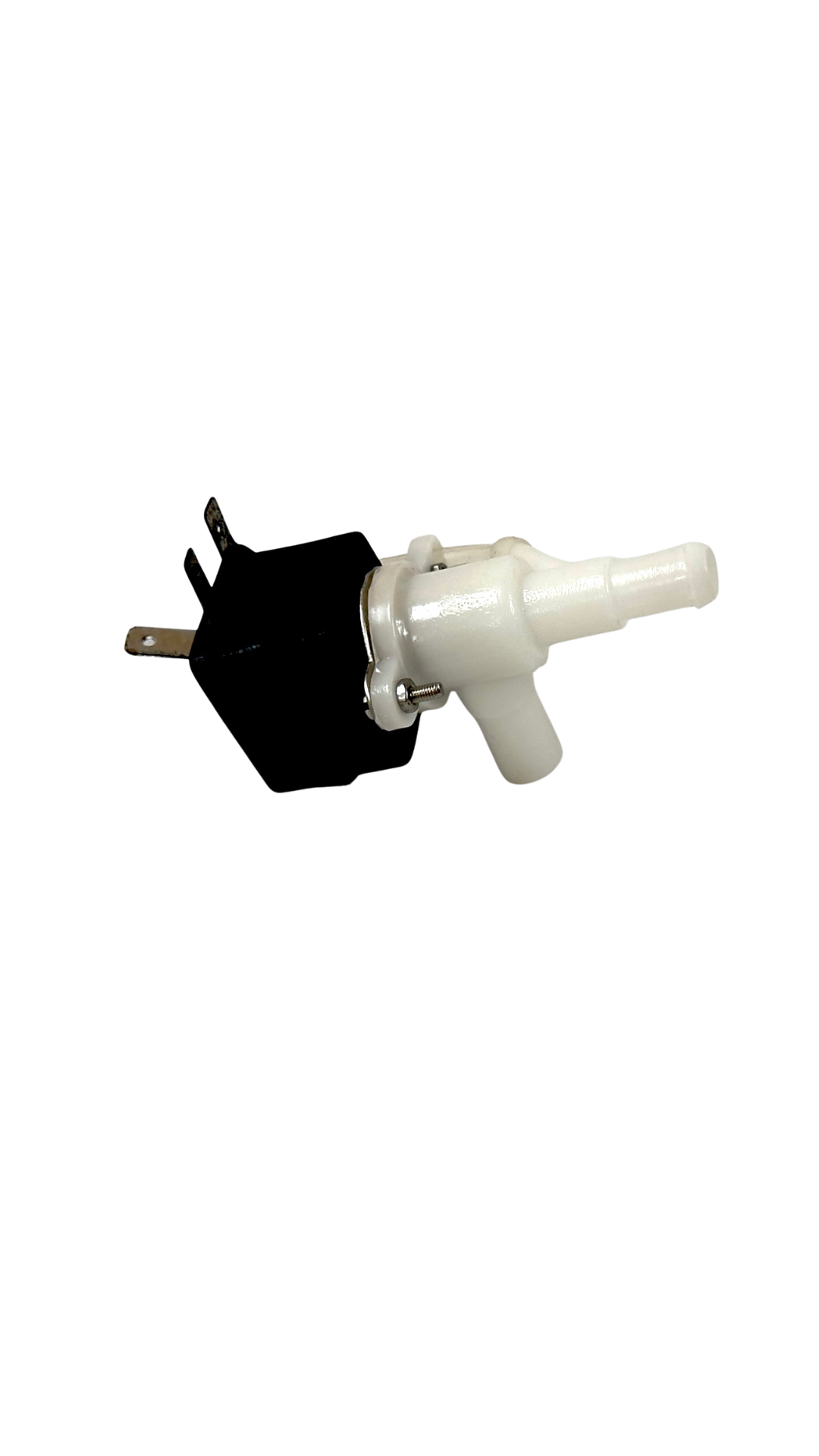

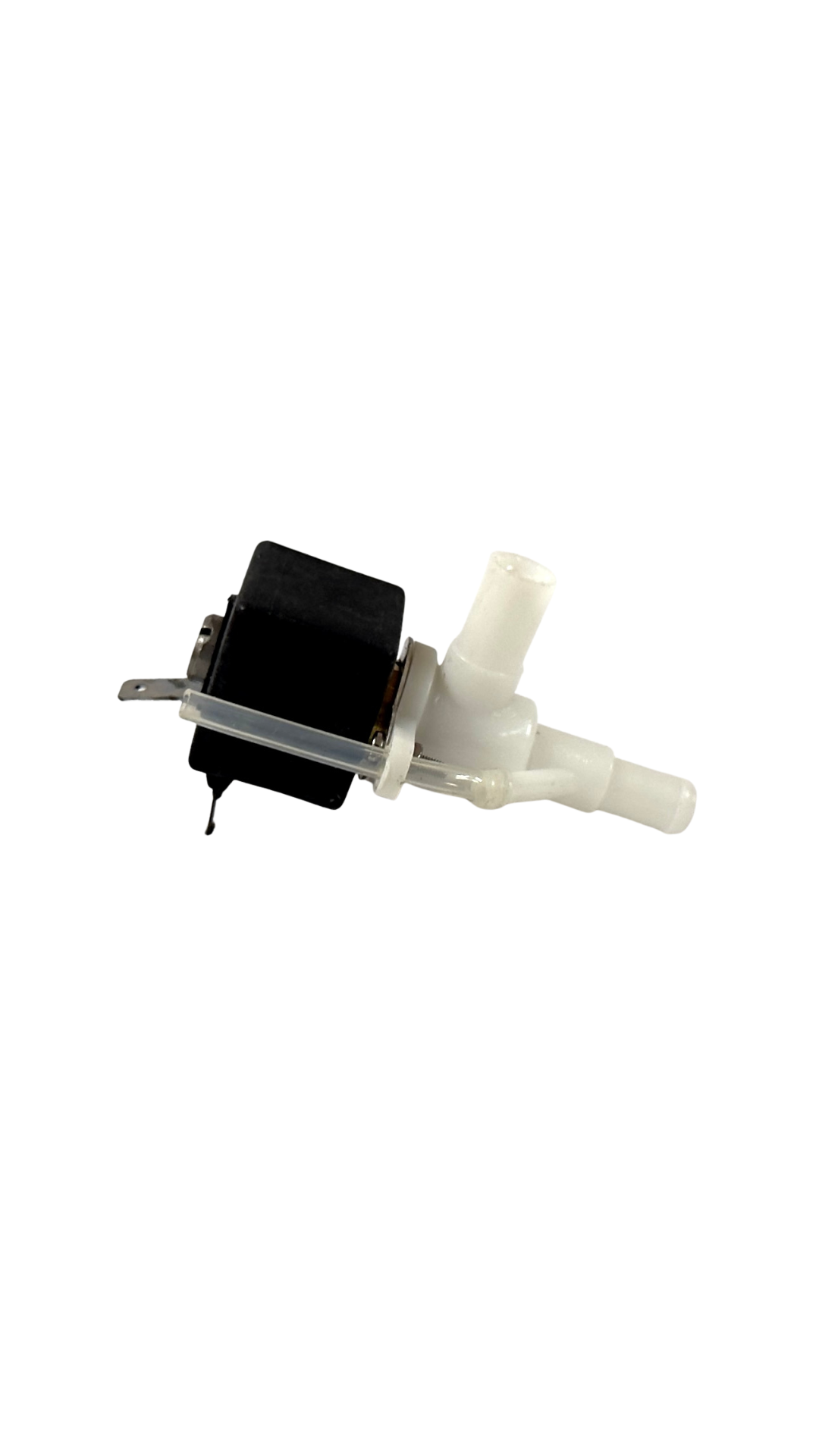

AC 230V Normally Closed Solenoid Valve – Air Type

The AC 230V Normally Closed Air Solenoid Valve is designed for precise airflow control in coffee vending machines, beverage dispensing systems, and pneumatic automation applications. Built with a durable PP body and copper encapsulated coil, this valve delivers reliable switching performance and long service life in demanding operating environments.

Its normally closed design ensures that airflow remains shut off when power is disconnected, providing enhanced operational safety and system control. The hose barb connections allow quick installation and compatibility with standard
beverage machine tubing systems.

Category: Spares

Description

Key Features

Normally Closed (NC) operation
AC 230V operating voltage
Designed for air flow control applications
Durable PP body construction
Copper encapsulated coil for reliable performance
2-port valve design
Hose barb connection for easy installation
Operating temperature range: 0°C to 80°C
Manufactured in India

Specifications

Media: Air
Voltage: AC 230V
Ports: 2
Inlet Port: ID 8.0mm, OD 12.5mm
Outlet Port: ID 8.0mm, OD 11.0mm
Coil Type: Encapsulated Coil
Coil Material: Copper
Power Consumption: 138W
Body Material: PP
Connection Type: Hose Barb
Country of Origin: India
